2702382 | Phoenix Contact
PSR extension module, 5 Form A (N/O) + 1 Form B (N/C), 24 VDC, 3 A, 2702382
Unit Price (€ / pc.)
187.8296 € *
Available in 5 Days: 902 pcs. - if ordered today

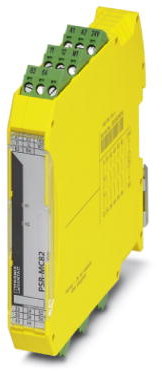

Extension module, 2702382, Phoenix Contact
Contact extension up to SIL 3, Cat. 4, PL e in conjunction with suitable evaluation device, 5 enabling current paths, US = 24 V DC, plug-in screw terminal block.
Features
- Low housing width of just 17.5 mm
- 1- and 2-channel control
- 5 enabling current paths, 1 confirmation current path, 1 digital signal output
- Automatic activation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | extension module | |
| Contact type | 5 Form A (N/O) + 1 Form B (N/C) | |
| Control Voltage | 24 VDC | |
| switching current | 3 A | |
| Assembly | DIN rail | |
| Width | 17.5 mm | |
| Height | 112.2 mm | |
| Depth | 114.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
