1533291 | Phoenix Contact

Valve connector, DIN shape A, 3 pole, 24 V, 0.34-1.5 mm², 1533291

Order No.: 61P9463
EAN: 4046356025980
MPN:
1533291
SACC-V-3CON-PG9/A-GVL 12/24
Series: SACC

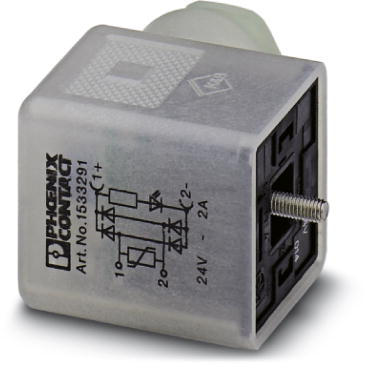

1533291 Phoenix Contact DIN Valve Connectors Image 1
1533291 Phoenix Contact DIN Valve Connectors Image 2
Image may differ
Unit Price (€ / pc.)
35.9499 € *
Available: 0 pcs.
Available in 10 days: 52 pcs.
Leadtime: 2 Weeks **
Total Price:
35.95 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
35.9499 €

Valve connector, 1533291, Phoenix Contact

Valve connector, 3-pole, valve connector A, with 1 LED, wired with varistor and rectifier, screw connection, cable gland Pg9, cable outer diameter 6-8 mm.

Technical specifications
Version DIN shape A
Cable cross-section 0.34-1.5 mm²
Pin number 3 pole
Rated voltage 24 V
Degree of protection (IP) IP65
Wiring varistor
LED display Yes
Type of locking central screw
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
