1527922 | Phoenix Contact

Valve connector, DIN shape A, 3 pole, 110 V, 0.34-1.5 mm², 1527922

Order No.: 61P9460
EAN: 4017918980962
MPN:
1527922
SACC-V-3CON-PG9/A-1L-SV 120V
Series: SACC

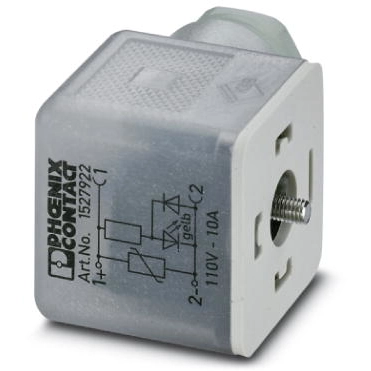

1527922 Phoenix Contact DIN Valve Connectors Image 1
1527922 Phoenix Contact DIN Valve Connectors Image 2
Image may differ
Unit Price (€ / pc.)
19.635 € *
Available: 0 pcs.
Available in 10 days: 47 pcs.
Leadtime: 2 Weeks **
Total Price:
19.64 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
19.635 €

Valve connector, 1527922, Phoenix Contact

Valve connector, 3-pole, valve connector A, with 1 LED, wired with varistor, screw connection, cable gland Pg9, cable outer diameter 6-8 mm.

Technical specifications
Version DIN shape A
Cable cross-section 0.34-1.5 mm²
Pin number 3 pole
Rated voltage 110 V
Degree of protection (IP) IP65
Wiring varistor
LED display Yes
Type of locking central screw
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
