1527906 | Phoenix Contact
Valve connector, DIN shape A, 3 pole, 24 V, 0.34-1.5 mm², 1527906
Unit Price (€ / pc.)
18.802 € *
Available in 10 days: 505 pcs. - if ordered today

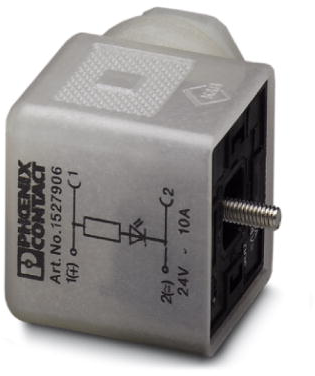

Valve connector, 1527906, Phoenix Contact
Valve connector, 3-pole, valve connector A, with 1 LED, screw connection, cable gland Pg9, cable outer diameter 6-8 mm.
Technical specifications
| Version | DIN shape A | |
| Cable cross-section | 0.34-1.5 mm² | |
| Pin number | 3 pole | |
| Rated voltage | 24 V | |
| Degree of protection (IP) | IP65 | |
| Wiring | without circuit | |
| LED display | Yes | |
| Type of locking | central screw |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
