2904626 | Phoenix Contact
DIN rail power supply, 48 to 56 VDC, 10 A, 480 W, 2904626
Unit Price (€ / pc.)
424.83 € *
Available in 10 days: 2,535 pcs. - if ordered today

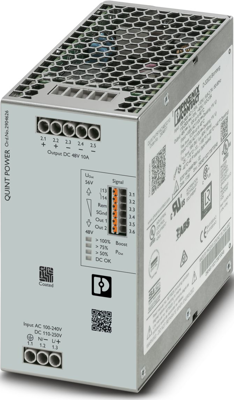

DIN rail power supply, 2904626, Phoenix Contact
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, NFC interface, and protective coating, input: 1-phase, output: 48 V DC / 10 A.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 480 W | |
| Number of outputs | 1 | |
| Output voltage DC | 48 to 56 VDC | |
| efficiency | 94 % | |
| Degree of protection (IP) | IP20 | |

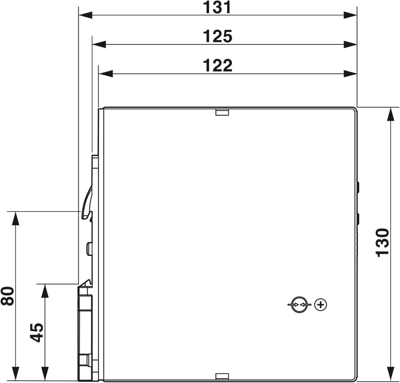

| Height | 130 mm | |
| Output current | 10 A | |
| Width | 70 mm | |
| Input voltage AC | 100-240 VAC, 110-250 VDC | |
| Depth | 125 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
