2904625 | Phoenix Contact
DIN rail power supply, 24 to 29.5 VDC, 10 A, 240 W, 2904625
Unit Price (€ / pc.)
274.89 € *
Available: 1 pcs.
Available in 5 Days: 453 pcs. - if ordered today

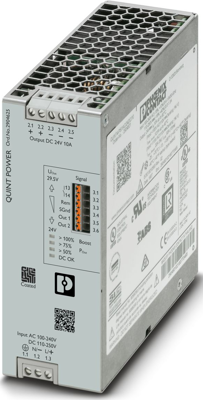

DIN rail power supply, 2904625, Phoenix Contact
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, NFC interface, and protective coating, input: 1-phase, output: 24 V DC / 10 A.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 10 A | |
| Output voltage DC | 24 to 29.5 VDC | |
| Input voltage AC | 100-240 VAC, 110-250 VDC | |
| Power | 240 W | |
| efficiency | 92.5 % | |
| Degree of protection (IP) | IP20 | |

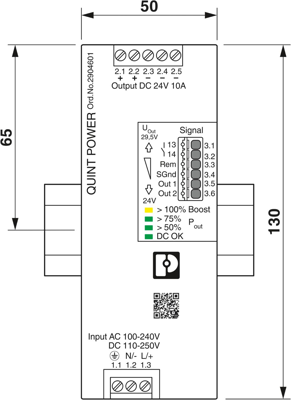

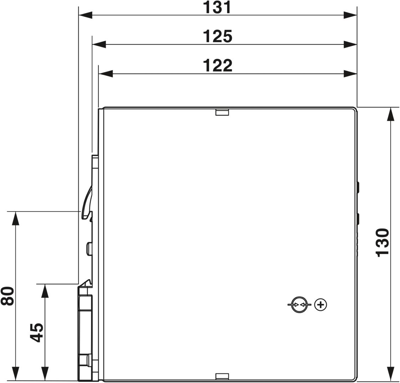

| Width | 50 mm | |
| Height | 130 mm | |
| Depth | 125 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
