2904616 | Phoenix Contact
DIN rail power supply, 24 to 28 VDC, 10 A, 240 W, 2904616
Unit Price (€ / pc.)
330.82 € *
Available in 5 Days: 3,472 pcs. - if ordered today

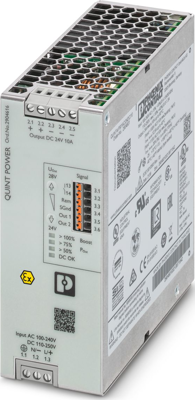

DIN rail power supply, 2904616, Phoenix Contact
Primary-switched QUINT POWER supply for DIN rail mounting, with selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, protective coating and integrated decoupling MOSFET, input: 1-phase, output: 24 V DC / 10 A.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 24 to 28 VDC | |
| Power | 240 W | |
| Depth | 125 mm | |
| efficiency | 92.8 % | |
| Height | 130 mm | |
| Input voltage AC | 100-240 VAC, 110-250 VDC | |
| Width | 50 mm | |
| Number of outputs | 1 | |
| Output current | 10 A | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
