2904602 | Phoenix Contact

Power supply, 24 to 29.5 VDC, 20 A, 480 W, 2904602

Order No.: 64P3240
EAN: 4046356985352
MPN:
2904602
QUINT4-PS/1AC/24DC/20
Series: QUINT

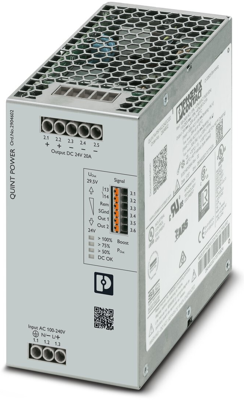

2904602 Phoenix Contact DIN Rail Power Supplies Image 1

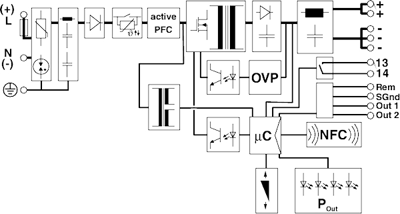

2904602 Phoenix Contact DIN Rail Power Supplies Image 2
Image may differ
Unit Price (€ / pc.)
341.9108 € *
Available in 10 days: 2,576 pcs. - if ordered today
Total Price:
341.91 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
341.9108 €
Uninterruptible power supply with IQ Technology 1AC/1AC/500 VA. For 120 V AC/230 V AC applications. Provides information on charge status, remaining battery life and service life of the battery module at any time, thus increasing system availability.
Technical specifications
Filter Property Value
Output voltage DC 24 to 29.5 VDC
Height 130.7 mm
Power 480 W
Number of outputs 1
Degree of protection (IP) IP20
efficiency 92.4 %
Width 70.1 mm
Output current 20 A
Depth 125 mm
Input voltage AC 100-240 VAC, 110-250 VDC
Logistics
Property Value
Country of origin TH
Customs tariff number 85043180
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
