2904376 | Phoenix Contact
Power supply, 24 to 28 VDC, 6.25 A, 150 W, 2904376
Unit Price (€ / pc.)
100.5669 € *
Available in 5 Days: 1,535 pcs. - if ordered today

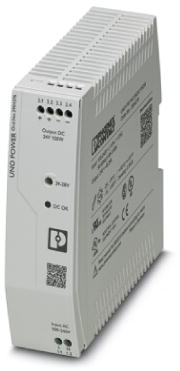

Power supply, 2904376, Phoenix Contact
Primary switched UNO power supply for DIN rail mounting, input: 1-phase, output: 24 VDC/150 W.
Features
- Flexible mounting by simply snapping onto the DIN rail
- Energy efficiency
- Outdoor installation
- Wide temperature range from -25 °C to + 70 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 6.25 A | |
| Output voltage DC | 24 to 28 VDC | |
| Input voltage AC | 85-264 VAC | |
| Power | 150 W | |
| efficiency | 91 % | |
| Degree of protection (IP) | IP20 | |
| Width | 37 mm | |
| Height | 130 mm | |
| Depth | 125 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | VN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
