Power supply, 36 to 55 VDC, 5 A, 240 W, 2903159
Unit Price (€ / pc.)
211.9866 € *
Standard delivery time from the manufacturer is: 3 Weeks

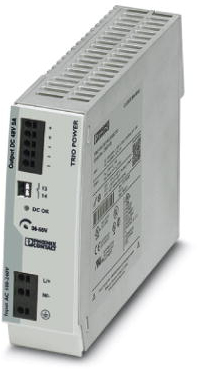

Power supply, 2903159, Phoenix Contact
Primary switched TRIO power supply for DIN rail mounting, Input: 1-phase, Output: 48 VDC/5 A, Dynamic Boost, Tool-less quick connection technology for solid and stranded conductors with ferrules.
Features
- Time saving due to push-in connection and narrow design
- Increased system availability
- Wide temperature range from -25 °C to + 70 °C and device start at -40 °C
- High dielectric strength
- High vibration and shock resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 160 mm | |
| Degree of protection (IP) | IP20 | |
| Height | 130 mm | |
| Width | 42 mm | |
| Power | 240 W | |
| efficiency | 90.5 % | |
| Output current | 5 A | |
| Output voltage DC | 36 to 55 VDC | |
| Number of outputs | 1 | |
| Input voltage AC | 100-240 VAC, 99-275 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
