2903157 | Phoenix Contact
Power supply, 12 to 18 VDC, 5 A, 60 W, 2903157
Unit Price (€ / pc.)
158.9721 € *
Available in 5 Days: 476 pcs. - if ordered today

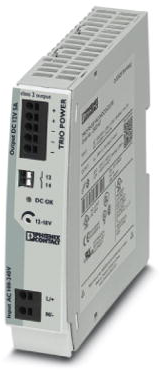

Power supply, 2903157, Phoenix Contact
Primary switched power supply TRIO POWER with push-in connection for DIN rail mounting, input: 1-phase, output: 12 VDC/5 A C2LPS.
Features
- Time saving due to push-in connection and narrow design
- Increased system availability
- High dielectric strength
- High vibration and shock resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 115 mm | |
| Degree of protection (IP) | IP20 | |
| Height | 130 mm | |
| Width | 30.2 mm | |
| Power | 60 W | |
| efficiency | 86 % | |
| Output current | 5 A | |
| Output voltage DC | 12 to 18 VDC | |
| Number of outputs | 1 | |
| Input voltage AC | 85-264 VAC, 99-275 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
