2903156 | Phoenix Contact
Power supply, 24 to 28 VDC, 40 A, 960 W, 2903156
Unit Price (€ / pc.)
429.0307 € *
Available in 5 Days: 3,979 pcs. - if ordered today

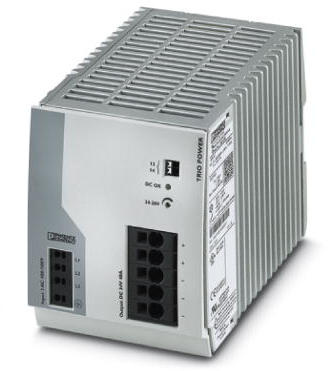

Power supply, 2903156, Phoenix Contact
Primary switched TRIO power supply for DIN rail mounting, Input: 3-phase, Output: 24 VDC/40 A, Dynamic Boost, Tool-less quick connection technology for solid and stranded conductors with ferrules.
Features
- Time saving due to push-in connection and narrow design
- Increased system availability
- Wide temperature range from -25 °C to + 70 °C and device start at -40 °C
- Mechanically robust
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 160 mm | |
| Degree of protection (IP) | IP20 | |
| Height | 131.52 mm | |
| Width | 110 mm | |
| Power | 960 W | |
| efficiency | 93 % | |
| Output current | 40 A | |
| Output voltage DC | 24 to 28 VDC | |
| Number of outputs | 1 | |
| Input voltage AC | 400-500 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
