2902998 | Phoenix Contact
Power supply, 12 VDC, 2.5 A, 30 W, 2902998
Unit Price (€ / pc.)
54.5734 € *
Available in 10 days: 3,922 pcs. - if ordered today

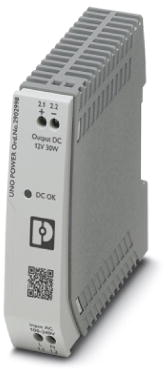

Power supply, 2902998, Phoenix Contact
Primary switched UNO POWER power supply for DIN rail mounting, input: 1-phase, output: 12 VDC/30 W.
Features
- Flexible mounting by simply snapping onto the DIN rail
- Energy efficiency
- Outdoor installation
- Wide temperature range from -25 °C to + 70 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 90 mm | |
| Output voltage DC | 12 VDC | |
| Width | 22.5 mm | |
| Input voltage AC | 85-264 VAC | |
| efficiency | 87 % | |
| Number of outputs | 1 | |
| Degree of protection (IP) | IP20 | |
| Power | 30 W | |
| Output current | 2.5 A | |
| Depth | 84 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
