2902997 | Phoenix Contact
Power supply, 12 VDC, 8.3 A, 100 W, 2902997
Unit Price (€ / pc.)
98.4725 € *
Available in 5 Days: 2,198 pcs. - if ordered today

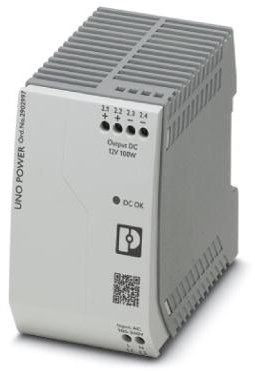

Power supply, 2902997, Phoenix Contact
Primary switched UNO POWER power supply for DIN rail mounting, input: 1-phase, output: 12 VDC/100 W.
Features
- Flexible mounting by simply snapping onto the DIN rail or screwing onto a flat surface
- Power density
- Energy saving
- High vibration and shock resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 84 mm | |
| Degree of protection (IP) | IP20 | |
| Height | 90 mm | |
| Width | 55 mm | |
| Power | 100 W | |
| efficiency | 88 % | |
| Output current | 8.3 A | |
| Output voltage DC | 12 VDC | |
| Number of outputs | 1 | |
| Input voltage AC | 85-264 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
