2902992 | Phoenix Contact
Power supply, 24 VDC, 2.5 A, 60 W, 2902992
Unit Price (€ / pc.)
69.0914 € *
Available in 5 Days: 35,542 pcs. - if ordered today

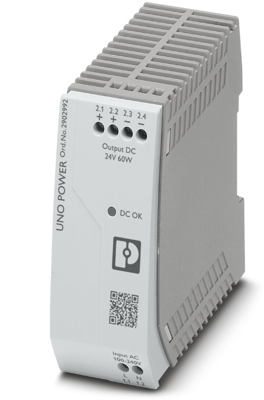

Power supply unit, 2902992, Phoenix Contact
Features
- Flexible mounting by simply snapping onto the DIN rail
- More space in the control cabinet with up to 20 % higher power density
- Maximum energy efficiency, thanks to over 90 % efficiency and extremely low idling losses under 0.3 W
- Outdoor installation, thanks to the wide temperature range from -25°C to +70°C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Width | 35 mm | |
| Depth | 84 mm | |
| Output voltage DC | 24 VDC | |
| Degree of protection (IP) | IP20 | |
| efficiency | 90 % | |
| Output current | 2.5 A | |
| Power | 60 W | |
| Input voltage AC | 100-240 VAC | |
| Height | 90 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
