2902646 | Phoenix Contact
Power supply, 4.5 to 6 VDC, 10 A, 50 W, 2902646
Unit Price (€ / pc.)
164.9935 € *
Standard delivery time from the manufacturer is: On Request

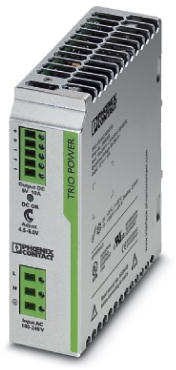

Power supply, 2902646, Phoenix Contact
Primary switched power supply TRIO POWER with push-in connection for DIN rail mounting, input: 1-phase, output: 5 VDC/10 A.
Features
- Robust construction
- Wide temperature range from -25 °C to + 70 °C
- High dielectric strength
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 115 mm | |
| Degree of protection (IP) | IP20 | |
| Height | 130.1 mm | |
| Width | 40.05 mm | |
| Power | 50 W | |
| efficiency | 80 % | |
| Output current | 10 A | |
| Output voltage DC | 4.5 to 6 VDC | |
| Number of outputs | 1 | |
| Input voltage AC | 85-264 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
