2866381 | Phoenix Contact
Power supply, 22.5 to 29.5 VDC, 20 A, 480 W, 2866381
Order No.: 25K206
EAN: 4046356046664
MPN:
2866381
TRIO-PS/1AC/24DC/20
Unit Price (€ / pc.)
236.81 € *
Standard delivery time from the manufacturer is: On Request

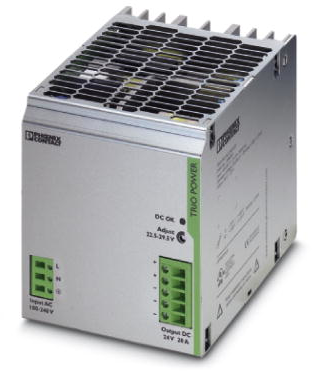

Power supply unit, 2866381, Phoenix Contact
Primary-switched TRIO POWER power supply for DIN rail mounting, Input: 1-phase, Output: 24 V DC/20 A
Features
- Use the third negative terminal block as a grounding terminal block and minimize installation costs
- Maximum operational reliability thanks to high MTBF (mean time between failures) of more than 500,000 hours and high dielectric strength of up to 300 V AC
- Compensation of voltage drops by means of output voltage that can be adjusted on the front
Technical specifications
| Filter | Property | Value |
|---|---|---|

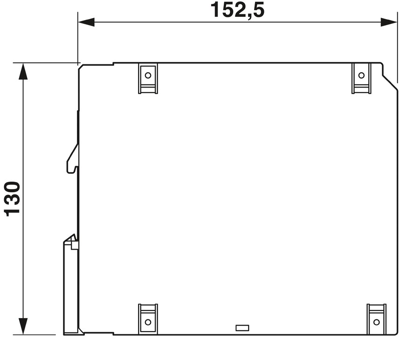

| Depth | 152.5 mm | |
| Height | 130 mm | |
| efficiency | 91 % | |
| Output current | 20 A | |
| Width | 115 mm | |
| Number of outputs | 1 | |
| Power | 480 W | |
| Degree of protection (IP) | IP20 | |
| Output voltage DC | 22.5 to 29.5 VDC | |
| Input voltage AC | 85-264 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
