1168603 | Phoenix Contact
DIN rail power supply, 24 to 29.5 VDC, 40 A, 960 W, 1168603
Unit Price (€ / pc.)
460.53 € *
Standard delivery time from the manufacturer is: 2 Weeks

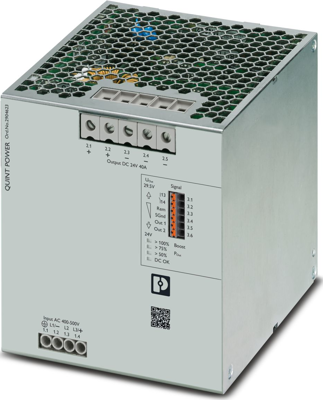

DIN rail power supply, 1168603, Phoenix Contact
Preconfigured and read-only version of the primary-switched QUINT POWER power supply with set output voltage and adjusted signaling, input: 3-phase, output: 24 V DC / 40 A.
Features
- Most powerful output side: easy system expansion, reliable heavy load startup and miniature circuit breaker tripping
- Most robust input side: high noise immunity, thanks to integrated gas-filled surge arrester (up to 6 kV) and ≥ 20 ms mains failure buffer time
- Most comprehensive signaling: preventive function monitoring reports critical operating states before errors occur
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 125 mm | |
| Degree of protection (IP) | IP20 | |
| Height | 130 mm | |
| Width | 120 mm | |
| Power | 960 W | |
| efficiency | 95.7 % | |
| Output current | 40 A | |
| Output voltage DC | 24 to 29.5 VDC | |
| Number of outputs | 1 | |
| Input voltage AC | 400-500 VAC, 260-300 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
