1151048 | Phoenix Contact
DIN rail power supply, 24 to 29.5 VDC, 20 A, 480 W, 1151048
Unit Price (€ / pc.)
332.01 € *
Available in 10 days: 2,013 pcs. - if ordered today

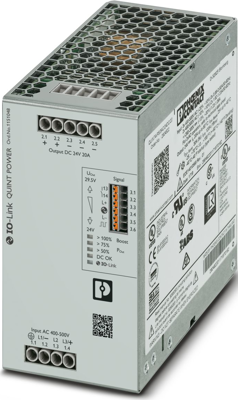

DIN rail power supply, 1151048, Phoenix Contact
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 3-phase, output: 24 V DC / 20 A.
Features
- Most powerful output side: easy system expansion, reliable heavy load startup and miniature circuit breaker tripping
- Most robust input side: high noise immunity, thanks to integrated gas-filled surge arrester (up to 6 kV) and ≥ 20 ms mains failure buffer time
- Most comprehensive signaling: preventive function monitoring reports critical operating states before errors occur
- Communicative: Use in all industrial networks with integrated IO-Link interface and direct connection to the QUINT UPS or the CAPAROC circuit breaker system with the system integration
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 130 mm | |
| Output voltage DC | 24 to 29.5 VDC | |
| Width | 70 mm | |
| Input voltage AC | 400-500 VAC, 260-300 VDC | |
| efficiency | 94.1 % | |
| Number of outputs | 1 | |
| Degree of protection (IP) | IP20 | |
| Power | 480 W | |
| Output current | 20 A | |
| Depth | 125 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
