2914835 | Phoenix Contact

Plastic housing lower part, (L x W x H) 84.8 x 22.6 x 99 mm, light gray, IP20, 2914835

Order No.: 64P1283
EAN: 4017918964603
MPN:
2914835
ME 22,5 F-UT TBUS KMGY
Series: ME
2914835 Phoenix Contact DIN-Rail Enclosures
Image may differ
Unit Price (€ / pc.)
7.2233 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
7.22 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.2233 €

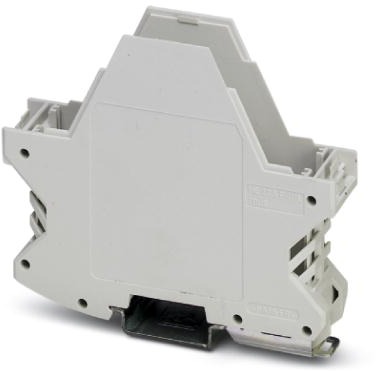

Lower part of housing, 2914835, Phoenix Contact

DIN rail housing, lower housing part with metal foot catch, flat design and vents, Width: 22.6 mm, Height: 99 mm, Depth: 84.8 mm, Color: light grey (7035), Cross connection: DIN rail connector (optional), number of positions cross connector: 5

Features

  • Tool-free mounting
  • Flammability rating V0 in accordance with UL 94
  • Variety of connection technology
  • Can be mounted on the DIN rail
  • With integrated or DIN-rail-mountable bus connector as an option
Technical specifications
Material plastic
Length 84.8 mm
Width 22.6 mm
Height 99 mm
Colour light gray
Degree of protection (IP) IP20
Logistics
Customs tariff number 85472000
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
