2914327 | Phoenix Contact

Plastic housing lower part, (L x W x H) 107.3 x 22.6 x 99 mm, light gray, IP20, 2914327

Order No.: 64P1340
EAN: 4017918953997
MPN:
2914327
ME 22,5 UT/FE TBUS KMGY
Series: ME
2914327 Phoenix Contact DIN-Rail Enclosures
Image may differ
Unit Price (€ / pc.)
9.0083 € *
Available in 10 days: 140 pcs. - if ordered today
Total Price:
9.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.0083 €

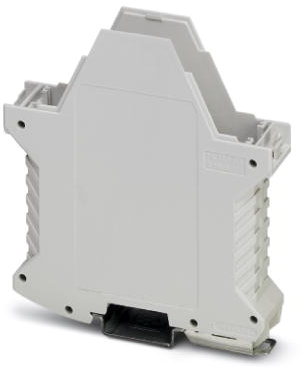

Lower part of housing, 2914327, Phoenix Contact

DIN rail housing, lower housing part with metal foot catch, FE contact, tall design and vents, Width: 22.6 mm, Height: 99 mm, Depth: 107.3 mm, Color: light grey (7035), Cross connection: DIN rail connector (optional), number of positions cross connector: 5

Features

  • Tool-free mounting
  • Flammability rating V0 in accordance with UL 94
  • Variety of connection technology
  • Can be mounted on the DIN rail
  • With integrated or DIN-rail-mountable bus connector as an option
Technical specifications
Material plastic
Length 107.3 mm
Width 22.6 mm
Height 99 mm
Colour light gray
Degree of protection (IP) IP20
Logistics
Customs tariff number 85472000
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
