2869634 | Phoenix Contact

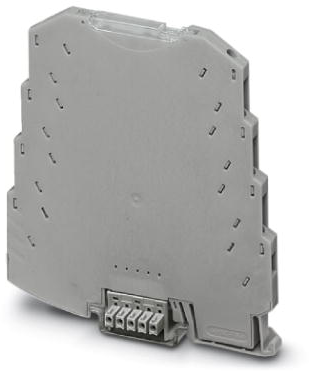

Plastic DIN rail enclosure, (L x W x H) 102.5 x 6.2 x 93.1 mm, light gray, IP20, 2869634

Order No.: 64P1526
EAN: 4017918975135
MPN:
2869634
ME MAX 6,2 SC-TBUS 4-4 KMGY
Series: ME MAX
2869634 Phoenix Contact DIN-Rail Enclosures
Image may differ
Unit Price (€ / pc.)
16.0888 € *
Available in 10 days: 39 pcs. - if ordered today
Total Price:
16.09 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
16.0888 €

Electronic housing, 2869634, Phoenix Contact

DIN rail housing, complete housing, tall design, TBUS option and screw connection, Width: 6.2 mm, Height: 93.1 mm, Depth: 102.5 mm, Color: light grey (7035), cross connection: DIN rail connector (optional)

Features

  • Easy installation
  • Variety of connection technology
  • Can be mounted on the DIN rail
  • With DIN-rail-mountable bus connector and power connector system as an option
  • Transparent front cover can be swiveled
Technical specifications
Material plastic
Length 102.5 mm
Width 6.2 mm
Height 93.1 mm
Colour light gray
Degree of protection (IP) IP20
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
