2862958 | Phoenix Contact

Input terminal for inline station, Inputs: 16, (W x H x D) 48.8 x 140.5 x 71.5 mm, 2862958

Order No.: 64P8917
EAN: 4017918904968
MPN:
2862958
IB IL 24 DI 16-PAC/SN
Series: IB IL
2862958 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
270.9035 € *
Available in 5 Days: 41 pcs. - if ordered today
Total Price:
270.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
270.9035 €

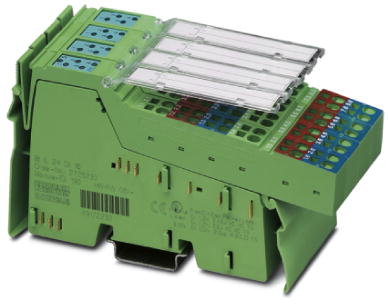

Digital module, 2862958, Phoenix Contact

Inline, Digital input terminal, Digital inputs: 16, 24 VDC, Connection technology: 3-conductor, Transmission speed in the local bus: 500 kbps, Degree of protection: IP20, including Inline connectors and marking fields, connectors numbered individually.

Features

  • Connection of sensors in 2- and 3-conductor technology
  • Maximum permissible load current per sensor: 250 mA
  • Diagnostic and status indicators
Technical specifications
Filter Property Value
Depth 71.5 mm
Number of digital inputs 16
Assembly DIN rail
Suitable for inline station
Version input terminal
Width 48.8 mm
Height 140.5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85389091
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
