2861959 | Phoenix Contact

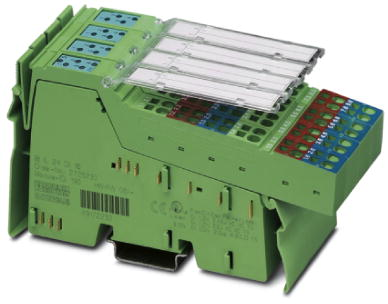

Input terminal for inline station, Inputs: 16, (W x H x D) 48.8 x 140.5 x 71.5 mm, 2861959

Order No.: 64P8934
EAN: 4017918974619
MPN:
2861959
IB IL 24 DI16-2MBD-PAC
Series: IB IL
2861959 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
297.2263 € *
Available in 10 days: 42 pcs. - if ordered today
Total Price:
297.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
297.2263 €

Digital module, 2861959, Phoenix Contact

Inline, Digital input terminal, Digital inputs: 16, 24 VDC, Connection technology: 3-conductor, Transmission speed in the local bus: 2 Mbps, Degree of protection: IP20, including Inline connector and marking fieldss.

Features

  • Connection of sensors in 2-, 3-conductor technology
  • Maximum permissible load current per sensor: 250 mA
  • Diagnostic and status indicators
Technical specifications
Filter Property Value
Number of digital inputs 16
Assembly DIN rail
Version input terminal
Height 140.5 mm
Suitable for inline station
Width 48.8 mm
Depth 71.5 mm
Logistics
Property Value
Customs tariff number 85389091
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
