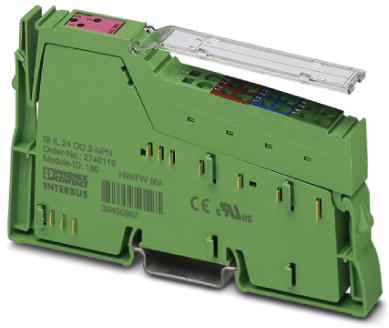

2861496 | Phoenix Contact
Output terminal for inline station, Outputs: 2, (W x H x D) 12.2 x 119.8 x 71.5 mm, 2861496
Unit Price (€ / pc.)
125.8901 € *
Standard delivery time from the manufacturer is: 4 Weeks
Digital module, 2861496, Phoenix Contact
Inline, Digital output terminal, Digital outputs: 2 (NPN), 24 VDC, Connection technology: 4-conductor, Transmission speed in the local bus: 500 kbps, Degree of protection: IP20, including Inline connector and labeling field.
Features
- Nominal current per output: 500 mA
- Total current of the terminal: 1 A
- Short-circuit and overload-protected outputs
- Diagnostic and status indicators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 71.5 mm | |
| Version | output terminal | |
| Height | 119.8 mm | |
| Number of digital outputs | 2 | |
| Suitable for | inline station | |
| Width | 12.2 mm | |
| Assembly | DIN rail |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
