2861289 | Phoenix Contact

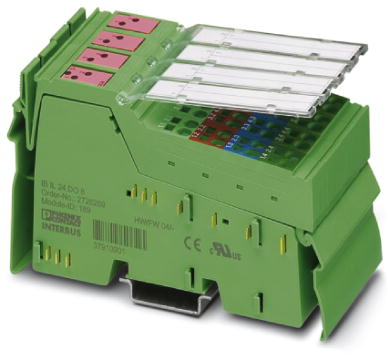

Output terminal for inline station, Outputs: 8, (W x H x D) 48.8 x 119.8 x 71.5 mm, 2861289

Order No.: 64P8959
EAN: 4017918894221
MPN:
2861289
IB IL 24 DO 8-PAC
Series: IB IL
2861289 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
215.7113 € *
Available in 10 days: 74 pcs. - if ordered today
Total Price:
215.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
215.7113 €

Digital module, 2861289, Phoenix Contact

Inline, Digital output terminal, Digital outputs: 8, 24 VDC, Connection technology: 4-conductor, Transmission speed in the local bus: 500 kbps, Degree of protection: IP20, including Inline connectors and marking fields.

Features

  • Connection of actuators in 2-, 3-, and 4-conductor technology
  • Nominal current per output: 500 mA
  • Total current of the terminal: 4 A
  • Short-circuit and overload-protected outputs
  • Diagnostic and status indicators
Technical specifications
Filter Property Value
Depth 71.5 mm
Version output terminal
Height 119.8 mm
Number of digital outputs 8
Suitable for inline station
Width 48.8 mm
Assembly DIN rail
Logistics
Property Value
Country of origin DE
Customs tariff number 85389091
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
