2861276 | Phoenix Contact

Output terminal for inline station, Outputs: 4, (W x H x D) 12.2 x 140.5 x 71.5 mm, 2861276

Order No.: 64P8954
EAN: 4017918894214
MPN:
2861276
IB IL 24 DO 4-PAC
Series: IB IL
2861276 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
131.0547 € *
Available in 10 days: 1,256 pcs. - if ordered today
Total Price:
131.05 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
131.0547 €

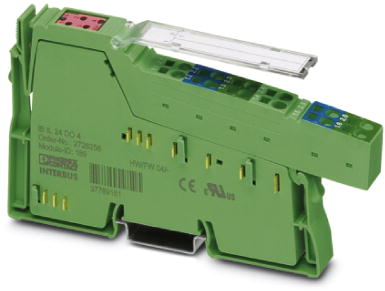

Digital module, 2861276, Phoenix Contact

Inline, Digital output terminal, Digital outputs: 4, 24 VDC, 500 mA, Connection technology: 3-conductor, Transmission speed in the local bus: 500 kbps, Degree of protection: IP20, including Inline connector and labeling field.

Features

  • Connection of actuators in 2- and 3-conductor technology
  • Nominal current per output: 500 mA
  • Total current of the terminal: 2 A
  • Short-circuit and overload-protected outputs
Technical specifications
Filter Property Value
Assembly DIN rail
Number of digital outputs 4
Version output terminal
Height 140.5 mm
Suitable for inline station
Width 12.2 mm
Depth 71.5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85389099
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
Substance description Lead
