2861263 | Phoenix Contact

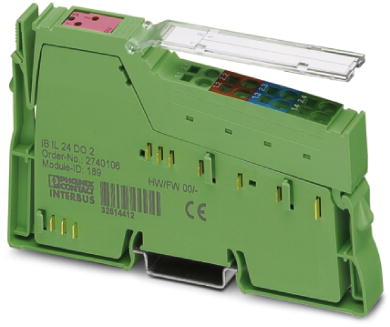

Output terminal for inline station, Outputs: 2, (W x H x D) 12.2 x 119.8 x 71.5 mm, 2861263

Order No.: 64P8943
EAN: 4017918894207
MPN:
2861263
IB IL 24 DO 2-2A-PAC
Series: IB IL
2861263 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
123.2364 € *
Available in 10 days: 232 pcs. - if ordered today
Total Price:
123.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
123.2364 €

Digital module, 2861263, Phoenix Contact

Inline, Digital output terminal, Digital outputs: 2, 24 VDC, 2 A, Connection technology: 4-conductor, Transmission speed in the local bus: 500 kbps, Degree of protection: IP20, including Inline connector and labeling field.

Features

  • Approved for use in a safety-related segment circuit
  • Connection of actuators in 2-, 3-, and 4-conductor technology
  • Nominal current per output: 2 A
  • Total current of the terminal: 4 A
  • Short-circuit and overload-protected outputs
Technical specifications
Filter Property Value
Number of digital outputs 2
Suitable for inline station
Depth 71.5 mm
Height 119.8 mm
Assembly DIN rail
Version output terminal
Width 12.2 mm
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
