2861221 | Phoenix Contact

Input terminal for inline station, Inputs: 2, (W x H x D) 12.2 x 119.8 x 71.5 mm, 2861221

Order No.: 64P8921
EAN: 4017918894153
MPN:
2861221
IB IL 24 DI 2-PAC
Series: IB IL
2861221 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
78.0045 € *
Available in 10 days: 132 pcs. - if ordered today
Total Price:
78.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
78.0045 €

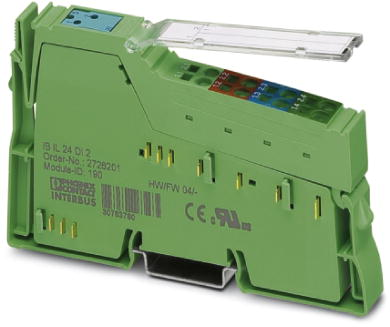

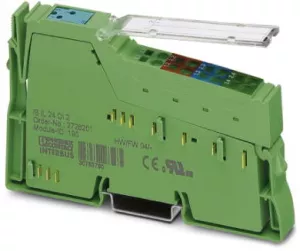

Digital module, 2861221, Phoenix Contact

Inline, Digital input terminal, Digital inputs: 2, 24 VDC, Connection technology: 4-conductor, Transmission speed in the local bus: 500 kbps, Degree of protection: IP20, including Inline connector and labeling fields.

Features

  • Connection of sensors in 2-, 3-, and 4-conductor technology
  • Maximum permissible load current per sensor: 250 mA
  • Diagnostic and status indicators
Technical specifications
Filter Property Value
Suitable for inline station
Number of digital inputs 2
Depth 71.5 mm
Height 119.8 mm
Assembly DIN rail
Version input terminal
Width 12.2 mm
Logistics
Property Value
Customs tariff number 85389091
Country of origin DE
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
