2702106 | Phoenix Contact

I/O module for Axioline F station, Inputs: 16, Outputs: 16, (W x H x D) 35 x 129.9 x 54 mm, 2702106

Order No.: 64P8458
EAN: 4046356960441
MPN:
2702106
AXL F DI16/1 DO16/1 2H
Series: Axioline F
2702106 Phoenix Contact Digital modules

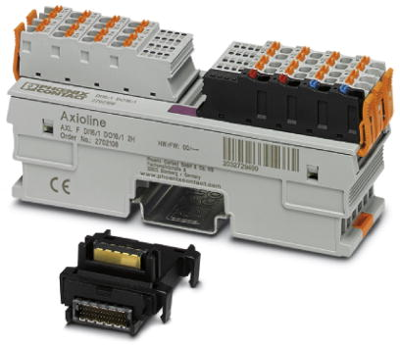

Image may differ
Unit Price (€ / pc.)
312.7082 € *
Available in 10 days: 520 pcs. - if ordered today
Total Price:
312.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
312.7082 €

Digital module, 2702106, Phoenix Contact

Axioline F, Digital I/O module, Digital inputs: 16, 24 VDC, Connection technology: 1-conductor, Digital outputs: 16, 24 VDC, 500 mA, Connection technology: 1-conductor, Transmission speed in the local bus: 100 Mbps, Degree of protection: IP20, including bus base module and Axioline F connectors.

Features

  • 16 digital inputs in accordance with EN 61131-2 type 1 and type 3
  • 24 VDC, 2.4 mA
  • Filter times can be adjusted in three increments: < 100 µs, 1000 µs or 3000 µs
  • Maximum input frequency: 5 kHz
  • 24 VDC, 500 mA
  • Minimum update time of < 100 μs
  • Device rating plate stored
Technical specifications
Filter Property Value
Number of digital inputs 16
Number of digital outputs 16
Width 35 mm
Depth 54 mm
Assembly DIN rail
Suitable for Axioline F station
Height 129.9 mm
Version I/O module
Logistics
Property Value
Country of origin DE
Customs tariff number 85389091
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
