2702071 | Phoenix Contact

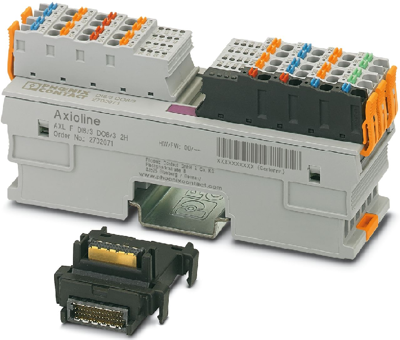

I/O module for Axioline F station, Inputs: 8, Outputs: 8, (W x H x D) 35 x 129.9 x 54 mm, 2702071
Unit Price (€ / pc.)
257.9444 € *
Available in 10 days: 66 pcs. - if ordered today
Axioline F, digital input/output module, digital inputs: 8, 24 V DC, connection technology: 3-wire, digital outputs: 8, 24 V DC, 500 mA, connection technology: 3-wire, transmission speed in local bus: 100 MBit/s, protection rating: IP20, including bus base module and Axioline F connectors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of digital inputs | 8 | |
| Assembly | DIN rail | |
| Version | digital module | |
| Number of digital outputs | 8 | |
| Height | 129.9 mm | |
| Suitable for | Axioline F station | |
| Width | 35 mm | |
| Depth | 54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
