2701545 | Phoenix Contact

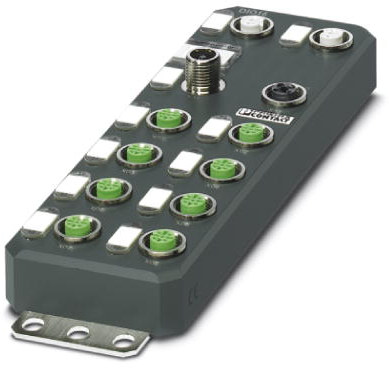

Decentralized I/O device for sercos, Inputs: 16, Outputs: 16, (W x H x D) 60 x 185 x 30.5 mm, 2701545

Order No.: 64P8427
EAN: 4046356763929
MPN:
2701545
AXL E S3 DIO16 M12 6P
Series: AXIOLINE E
2701545 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
579.4824 € *
Available in 10 days: 163 pcs. - if ordered today
Total Price:
579.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
579.4824 €

Digital module, 2701545, Phoenix Contact

Axioline E, Digital I/O device, Sercos, M12 fast connection technology, Digital inputs: 16, 24 VDC, Connection technology: 4-conductor, Digital outputs: 16, 24 VDC, Connection technology: 3-conductor, Plastic housing, Degree of protection: IP65/IP67.

Features

  • Transmission speed of 100 Mbps with a minimum cycle time of 250 µs
  • Diagnostic and status indicators
  • Short-circuit and overload protection of the sensor supply
Technical specifications
Filter Property Value
Height 185 mm
Number of digital inputs 16
Width 60 mm
Depth 30.5 mm
Version decentralized I/O device
Number of digital outputs 16
Suitable for sercos
Assembly wall mounting
Logistics
Property Value
Country of origin DE
Customs tariff number 85176200
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
