2701512 | Phoenix Contact

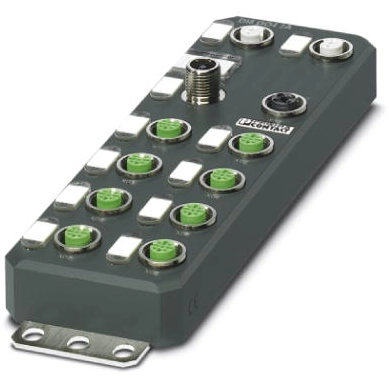

Decentralized I/O device for profibus, Inputs: 8, Outputs: 4, (W x H x D) 60 x 185 x 30.5 mm, 2701512

Order No.: 64P8413
EAN: 4046356763639
MPN:
2701512
AXL E PN DI8 DO4 2A M12 6P
Series: AXIOLINE E
2701512 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
561.6919 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
561.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
561.6919 €

Digital module, 2701512, Phoenix Contact

Axioline E, Digital I/O device, PROFINET, M12 fast connection technology, Digital inputs: 8, 24 VDC, Connection technology: 4-conductor, Digital outputs: 4, 24 VDC, Connection technology: 3-conductor, Plastic housing, Degree of protection: IP65/IP67.

Features

  • Transmission speed of 100 Mbps
  • Diagnostic and status indicators
  • Short-circuit and overload protection of the sensor supply
Technical specifications
Filter Property Value
Number of digital inputs 8
Depth 30.5 mm
Version decentralized I/O device
Height 185 mm
Number of digital outputs 4
Suitable for profibus
Width 60 mm
Assembly wall mounting
Logistics
Property Value
Country of origin DE
Customs tariff number 85176200
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
