2701511 | Phoenix Contact

Decentralized I/O device for profibus, Inputs: 16, Outputs: 16, (W x H x D) 60 x 185 x 30.5 mm, 2701511

Order No.: 64P8417
EAN: 4046356763622
MPN:
2701511
AXL E PN DIO16 M12 6P
Series: AXIOLINE E
2701511 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
579.4824 € *
Available in 10 days: 342 pcs. - if ordered today
Total Price:
579.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
579.4824 €

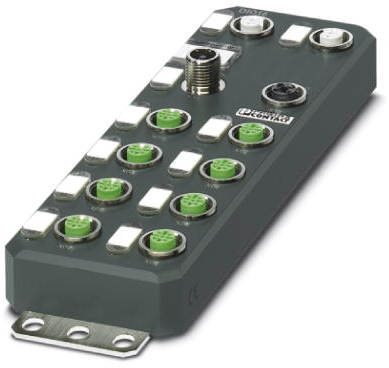

Digital module, 2701511, Phoenix Contact

Axioline E, Digital I/O device, PROFINET, M12 fast connection technology, Digital inputs: 16, 24 VDC, Connection technology: 4-conductor, Digital outputs: 16, 24 VDC, Connection technology: 3-conductor, Plastic housing, Degree of protection: IP65/IP67.

Features

  • Transmission speed of 100 Mbps
  • Diagnostic and status indicators
  • Short-circuit and overload protection of the sensor supply
Technical specifications
Filter Property Value
Assembly wall mounting
Number of digital outputs 16
Number of digital inputs 16
Version decentralized I/O device
Height 185 mm
Suitable for profibus
Width 60 mm
Depth 30.5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85176200
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
Substance description Lead
