2701499 | Phoenix Contact

Decentralized I/O device for profibus, Inputs: 16, Outputs: 16, (W x H x D) 60 x 185 x 30.5 mm, 2701499

Order No.: 64P8407
EAN: 4046356763530
MPN:
2701499
AXL E PB DIO16 M12 6P
Series: AXIOLINE E
2701499 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
512.5449 € *
Available in 10 days: 133 pcs. - if ordered today
Total Price:
512.54 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
512.5449 €

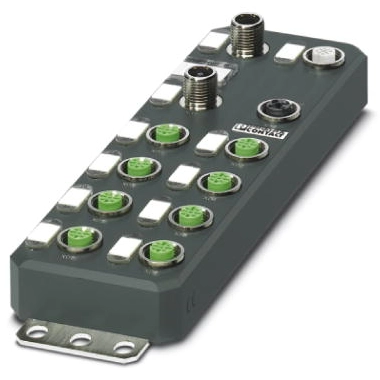

Digital module, 2701499, Phoenix Contact

Axioline E, Digital I/O device, PROFIBUS DP, M12 fast connection technology, Digital inputs: 16, 24 VDC, Connection technology: 4-conductor, Digital outputs: 16, 24 VDC, Connection technology: 3-conductor, Plastic housing, Degree of protection: IP65/IP67.

Features

  • Baud rate of up to 12 Mbaud (automatic baud rate detection)
  • Diagnostic and status indicators
  • Short-circuit and overload protection of the sensor supply
Technical specifications
Depth 30.5 mm
Height 185 mm
Number of digital inputs 16
Number of digital outputs 16
Suitable for profibus
Width 60 mm
Assembly wall mounting
Version decentralized I/O device
Logistics
Country of origin DE
Customs tariff number 85176200
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
