2701497 | Phoenix Contact

Decentralized I/O device for profibus, Inputs: 8, Outputs: 8, (W x H x D) 60 x 185 x 30.5 mm, 2701497

Order No.: 64P8405
EAN: 4046356763516
MPN:
2701497
AXL E PB DI8 DO8 M12 6P
Series: AXIOLINE E
2701497 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
497.7413 € *
Available in 10 days: 70 pcs. - if ordered today
Total Price:
497.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
497.7413 €

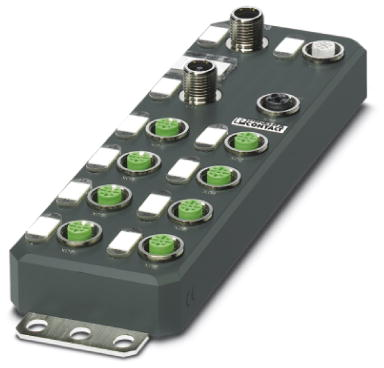

Digital module, 2701497, Phoenix Contact

Axioline E, Digital I/O device, PROFIBUS DP, M12 fast connection technology, Digital inputs: 8, 24 VDC, Connection technology: 4-conductor, Digital outputs: 8, 24 VDC, Connection technology: 3-conductor, Plastic housing, Degree of protection: IP65/IP67.

Features

  • Baud rate of up to 12 Mbaud (automatic baud rate detection)
  • Diagnostic and status indicators
  • Short-circuit and overload protection of the sensor supply
Technical specifications
Filter Property Value
Number of digital inputs 8
Assembly wall mounting
Version decentralized I/O device
Number of digital outputs 8
Height 185 mm
Suitable for profibus
Width 60 mm
Depth 30.5 mm
Logistics
Property Value
Customs tariff number 85176200
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
