2701494 | Phoenix Contact

Decentralized I/O device for ethernet/IP, Inputs: 16, Outputs: 16, (W x H x D) 60 x 185 x 30.5 mm, 2701494

Order No.: 64P8374
EAN: 4046356763486
MPN:
2701494
AXL E EIP DIO16 M12 6P
Series: AXIOLINE E
2701494 Phoenix Contact Digital modules

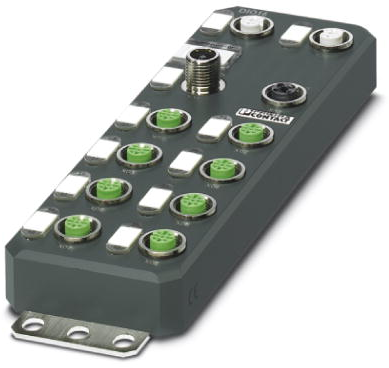

Image may differ
Unit Price (€ / pc.)
579.4824 € *
Available: 0 pcs.
Available in 10 days: 194 pcs.
Leadtime: 2 Weeks **
Total Price:
579.48 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
579.4824 €

Digital module, 2701494, Phoenix Contact

Axioline E, Digital I/O device, EtherNet/IP, M12 fast connection technology, Digital inputs: 16, 24 VDC, Connection technology: 4-conductor, Digital outputs: 16, 24 VDC, Connection technology: 3-conductor, Plastic housing, Degree of protection: IP65/IP67.

Features

  • Connection to EtherCAT/IP network using M12 connectors (D-coded)
  • Transmission speed of 10 Mbps and 100 Mbps
  • Connection of digital sensors using M12connectors (A-coded)
  • Diagnostic and status indicators
  • Short-circuit and overload protection of the sensor supply
Technical specifications
Depth 30.5 mm
Assembly wall mounting
Number of digital inputs 16
Width 60 mm
Height 185 mm
Number of digital outputs 16
Version decentralized I/O device
Suitable for ethernet/IP
Logistics
Country of origin DE
Customs tariff number 85176200
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
