2701226 | Phoenix Contact

I/O module for Axioline F station, Inputs: 32, (W x H x D) 53.6 x 126.1 x 54 mm, 2701226

Order No.: 64P8465
EAN: 4046356730785
MPN:
2701226
AXL F DI32/1 XC 1F
Series: Axioline F
2701226 Phoenix Contact Digital modules

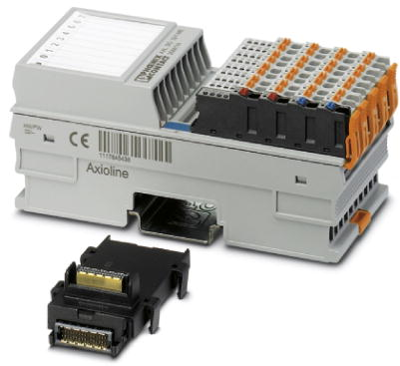

Image may differ
Unit Price (€ / pc.)
361.4030 € *
Available in 10 days: 174 pcs. - if ordered today
Total Price:
361.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
361.4030 €

Digital module, 2701226, Phoenix Contact

Axioline F, Digital input module, Digital inputs: 32, 24 VDC, Connection technology: 1-conductor, Extreme conditions version, Transmission speed in the local bus: 100 Mbps, Degree of protection: IP20, including bus base module and Axioline F connectors.

Features

  • 32 digital inputs in accordance with EN 61131-2 type 1 and type 3
  • 24 VDC, 2.4 mA
  • Minimum update time of < 100 μs
  • Filter times can be adjusted in three increments: < 100 µs, 1000 µs or 3000 µs
  • Maximum input frequency: 5 kHz
  • Device rating plate stored
  • Can be used under extreme ambient conditions
  • Extended temperature range of -40 °C to +70 °C
  • Partially coated PCBs
Technical specifications
Filter Property Value
Assembly DIN rail
Suitable for Axioline F station
Version I/O module
Depth 54 mm
Height 126.1 mm
Number of digital inputs 32
Width 53.6 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85389091
Compliance
Property Value
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
