2701224 | Phoenix Contact

I/O module for Axioline F station, Inputs: 16, (W x H x D) 53.6 x 129.9 x 54 mm, 2701224

Order No.: 64P8462
EAN: 4046356730877
MPN:
2701224
AXL F DI16/4 XC 2F
Series: Axioline F
2701224 Phoenix Contact Digital modules

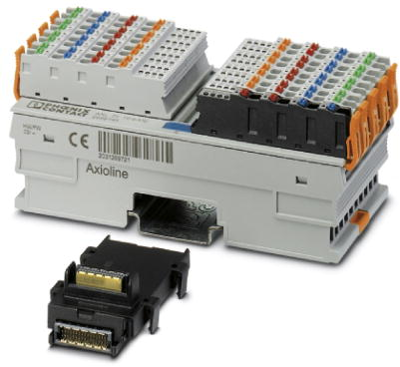

Image may differ
Unit Price (€ / pc.)
290.9312 € *
Available in 5 Days: 430 pcs. - if ordered today
Total Price:
290.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
290.9312 €

Digital module, 2701224, Phoenix Contact

Axioline F, Digital input module, Digital inputs: 16, 24 VDC, Connection technology: 4-conductor, Extreme conditions version, Transmission speed in the local bus: 100 Mbps, Degree of protection: IP20, including bus base module and Axioline F connectors.

Features

  • 16 digital inputs in accordance with EN 61131-2 type 1 and type 3
  • 24 VDC, 2.4 mA
  • Connection of sensors in 2-, 3-, and 4-conductor technology
  • Filter times can be adjusted in two increments: < 100 µs or 500 µs
  • Maximum input frequency: 5 kHz
  • Maximum permissible load current per sensor: 2 A
  • Maximum permissible load current of the module: 4 A (2 A for each group of a max. 8 sensors)
  • Minimum update time of < 100 μs
  • Device rating plate stored
  • Can be used under extreme ambient conditions
  • Extended temperature range of -40 °C to +70 °C
  • Partially coated PCBs
Technical specifications
Filter Property Value
Depth 54 mm
Number of digital inputs 16
Assembly DIN rail
Suitable for Axioline F station
Version I/O module
Width 53.6 mm
Height 129.9 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85389091
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
