2701155 | Phoenix Contact

Output terminal for inline station, Outputs: 4, (W x H x D) 12.2 x 140.5 x 71.5 mm, 2701155

Order No.: 64P8955
EAN: 4046356713818
MPN:
2701155
IB IL 24 DO 4-XC-PAC
Series: IB IL
2701155 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
153.2006 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
153.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
153.2006 €

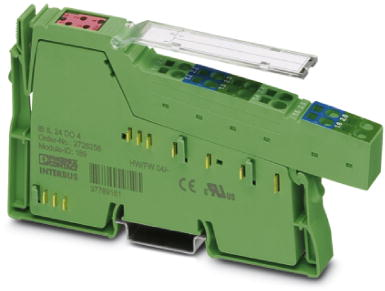

Digital module, 2701155, Phoenix Contact

Inline, Digital output terminal, Digital outputs: 4, 24 VDC, Connection technology: 3-conductor, Extreme conditions version, Transmission speed in the local bus: 500 kbps, Degree of protection: IP20, including Inline connector and labeling field.

Features

  • Connection of actuators in 2- and 3-conductor technology
  • Nominal current per output: 500 mA
  • Total current of the terminal: 2 A
  • Short-circuit and overload-protected outputs
  • Diagnostic and status indicators
  • Can be used under extreme ambient conditions
  • Extended temperature range of -40 °C to +70 °C
  • Coated PCBs
Technical specifications
Depth 71.5 mm
Assembly DIN rail
Width 12.2 mm
Height 140.5 mm
Number of digital outputs 4
Version output terminal
Suitable for inline station
Logistics
Country of origin DE
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
