2701009 | Phoenix Contact

Output terminal for inline station, Outputs: 4, (W x H x D) 12.2 x 140.5 x 71.5 mm, 2701009

Order No.: 64P8951
EAN: 4046356681056
MPN:
2701009
IB IL 24 DO 4/EF-PAC
Series: IB IL
2701009 Phoenix Contact Digital modules

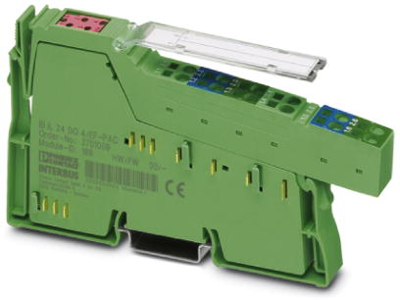

Image may differ
Unit Price (€ / pc.)
149.6782 € *
Available in 10 days: 292 pcs. - if ordered today
Total Price:
149.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
149.6782 €

Digital module, 2701009, Phoenix Contact

Inline, Digital output terminal, Digital outputs: 4, 24 VDC, Connection technology: 3-conductor, Transmission speed in the local bus: 500 kbps, Degree of protection: IP20, including Inline connector and labeling field.

Features

  • Connection of actuators in 2- and 3-conductor technology
  • Nominal current per output: 500 mA
  • Total current of the terminal: 2 A
  • Short-circuit and overload-protected outputs
  • Approved for use in a safety-related segment circuit
Technical specifications
Filter Property Value
Number of digital outputs 4
Suitable for inline station
Assembly DIN rail
Width 12.2 mm
Depth 71.5 mm
Version output terminal
Height 140.5 mm
Logistics
Property Value
Customs tariff number 85389091
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
