2700684 | Phoenix Contact

I/O module for Axioline F station, Inputs: 8, (W x H x D) 53.6 x 126.1 x 54 mm, 2700684

Order No.: 64P8469
EAN: 4046356916448
MPN:
2700684
AXL F DI8/2 110/220DC 1F
Series: Axioline F
2700684 Phoenix Contact Digital modules

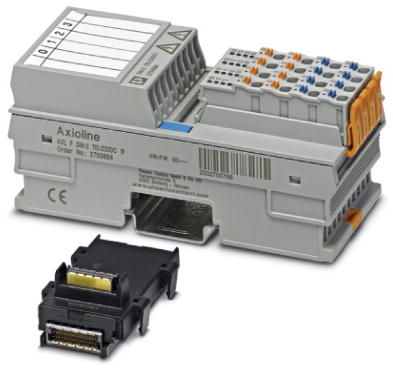

Image may differ
Unit Price (€ / pc.)
549.7681 € *
Available in 10 days: 69 pcs. - if ordered today
Total Price:
549.77 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
549.7681 €

Digital module, 2700684, Phoenix Contact

Axioline F, Digital input module, Digital inputs: 8, 110 VDC / 220 VDC, Connection technology: 2-conductor, corresponds to standard IEC 61850-3, Transmission speed in the local bus: 100 Mbps, Degree of protection: IP20, including bus base module and Axioline F connectors.

Features

  • 8 digital inputs according to EN 61131-2 type 1
  • 110 VDC / 220 VDC, 1.5 mA
  • Filter time of < 1 ms
  • Inputs are reverse polarity protected
  • Safe isolation in accordance with EN 61010-2-201/IEC 61010-2-201
  • Device rating plate stored
  • Diagnostic and status indicators
  • Meets the requirements of IEC 61850-3 and IEEE 1613
Technical specifications
Filter Property Value
Number of digital inputs 8
Assembly DIN rail
Version I/O module
Height 126.1 mm
Suitable for Axioline F station
Width 53.6 mm
Depth 54 mm
Logistics
Property Value
Customs tariff number 85389091
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
