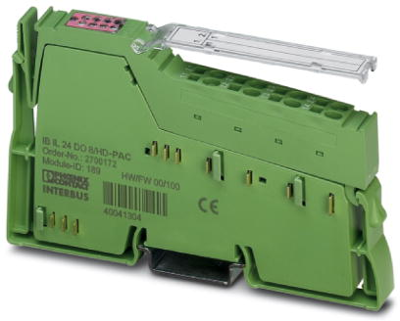

2700172 | Phoenix Contact

Output terminal for inline station, Outputs: 8, (W x H x D) 12.2 x 119.8 x 71.5 mm, 2700172

Order No.: 64P8962
EAN: 4046356492478
MPN:
2700172
IB IL 24 DO8/HD-PAC
Series: IB IL
2700172 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
125.8901 € *
Available in 10 days: 6,183 pcs. - if ordered today
Total Price:
125.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
125.8901 €

Digital module, 2700172, Phoenix Contact

Inline, Digital output terminal, Digital outputs: 16, 24 VDC, Connection technology: 1-conductor, Transmission speed in the local bus: 500 kbps, Degree of protection: IP20, including Inline connectors and labeling field.

Features

  • Nominal current per output: 500 mA
  • Total current of the terminal: 4 A
  • Short-circuit and overload-protected outputs
Technical specifications
Filter Property Value
Assembly DIN rail
Height 119.8 mm
Number of digital outputs 8
Version output terminal
Width 12.2 mm
Suitable for inline station
Depth 71.5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85389091
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
