2692898 | Phoenix Contact
Output terminal for inline station, Outputs: 32, (W x H x D) 48.8 x 119.8 x 71.5 mm, 2692898
Unit Price (€ / pc.)
393.7234 € *
Available: 0 pcs.
Available in 10 days: 22 pcs.
Leadtime: 2 Weeks **

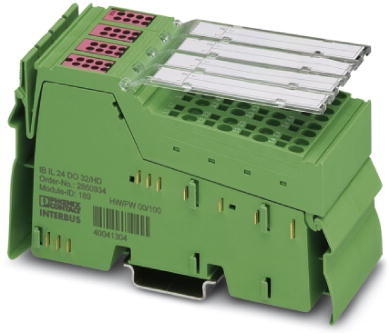

Digital module, 2692898, Phoenix Contact
Inline, Digital output terminal, Digital outputs: 32, 24 VDC, Connection technology: 1-conductor, Transmission speed in the local bus: 2 Mbps, Degree of protection: IP20, including Inline connector and labeling field.
Features
- Nominal current per output: 500 mA
- Total current of the terminal: 8 A
- Short-circuit and overload-protected outputs
Technical specifications
| Number of digital outputs | 32 | |
| Version | Ausgangsklemme | |
| Width | 48.8 mm | |
| Suitable for | Inline-Station | |
| Height | 119.8 mm | |
| Assembly | DIN-Schiene | |
| Depth | 71.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
