2688048 | Phoenix Contact

I/O module for Axioline F station, Outputs: 16, (W x H x D) 53.6 x 129.9 x 54 mm, 2688048

Order No.: 64P8476
EAN: 4046356501583
MPN:
2688048
AXL F DO16/3 2F
Series: Axioline F
2688048 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
270.9035 € *
Available in 5 Days: 301 pcs. - if ordered today
Total Price:
270.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
270.9035 €

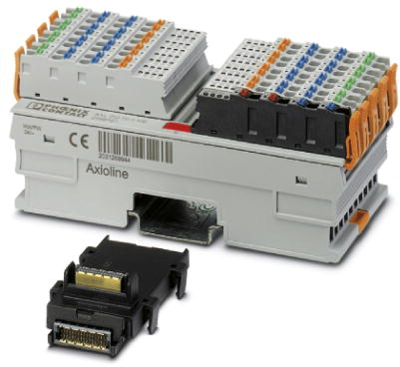

Digital module, 2688048, Phoenix Contact

Axioline F, Digital output module, Digital outputs: 16, 24 VDC, 500 mA, Connection technology: 3-conductor, Transmission speed in the local bus: 100 Mbps, Degree of protection: IP20, including bus base module and Axioline F connectors.

Features

  • 24 VDC, 500 mA
  • Connection of actuators in 2- and 3-conductor technology
  • Minimum update time of < 100 μs
  • Device rating plate stored
Technical specifications
Filter Property Value
Depth 54 mm
Assembly DIN rail
Suitable for Axioline F station
Version I/O module
Width 53.6 mm
Height 129.9 mm
Number of digital outputs 16
Logistics
Property Value
Country of origin DE
Customs tariff number 85389091
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
