2688022 | Phoenix Contact

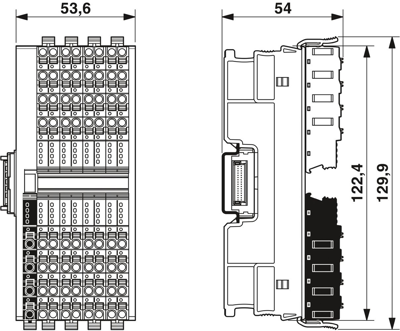

I/O module for Axioline F station, Inputs: 16, (W x H x D) 53.6 x 129.9 x 54 mm, 2688022

Order No.: 64P8461
EAN: 4046356501606
MPN:
2688022
AXL F DI16/4 2F
Series: Axioline F

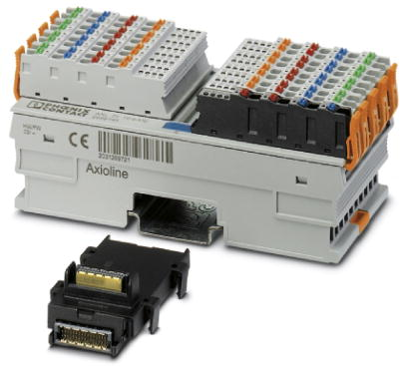

2688022 Phoenix Contact Digital modules Image 1
2688022 Phoenix Contact Digital modules Image 2
Image may differ
Unit Price (€ / pc.)
249.0670 € *
Available in 5 Days: 1,241 pcs. - if ordered today
Total Price:
249.07 € *
Price list
Quantity
Price per unit*
1 pcs.
249.0670 €
3 pcs.
241.5938 €
*incl. VAT plus shipping costs
Subject to prior sale

Digital module, 2688022, Phoenix Contact

Axioline F, Digital input module, Digital inputs: 16, 24 V DC, Connection technology: 4-conductor, Transmission speed in the local bus: 100 Mbps, Degree of protection: IP20, Including bus base module and Axioline F connectors.

Features

  • Connection of sensors in 2-, 3-, and 4-conductor technology
  • Maximum permissible load current per sensor: 2 A
  • Maximum permissible load current of the module: 4 A
  • Device rating plate stored
Technical specifications
Filter Property Value
Depth 54 mm
Number of digital inputs 16
Assembly DIN rail
Suitable for Axioline F station
Version I/O module
Width 53.6 mm
Height 129.9 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85389091
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
