2800904 | Phoenix Contact

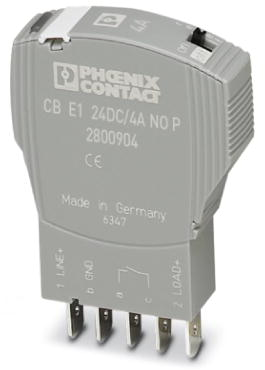

Circuit breaker, electronic, 1 pole, E characteristic, 4 A, 24 V (DC), faston plug 5.2 mm, IP30, 2800904
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
51.0748 € *
Standard delivery time from the manufacturer is: On Request
Device circuit breaker, 2800904, PHOENIX CO
The 2800904 is an active current limiting function that controls device operation with minimal degradation of current drive capability, even at elevated junction temperatures.
Features
- Compact design with precise nominal current levels
- Plug-in housing concept
- N/O contact for remote signaling of the operating state
- Active current limitation, even when switching capacitive loads
- RoHS compatible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | circuit breaker | |
| Version | electronic | |
| Tripping characteristics | E | |
| Pin number | 1 pole | |
| Rated current | 4 A | |
| Rated voltage (DC) | 24 V | |
| Connection | faston plug 5.2 mm | |
| Degree of protection (IP) | IP30 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85362010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
