1115658 | Phoenix Contact
Circuit breaker, electronic, 1 pole, E characteristic, 10 A, 24 V (DC), push-in, DIN rail, IP20, 1115658
Unit Price (€ / pc.)
107.2071 € *
Available in 5 Days: 2,199 pcs. - if ordered today
Total Price:
107.21 € *
Price list
Quantity
Price per unit*
1 pcs.
107.2071 €
5 pcs.
102.1020 €
*incl. VAT plus shipping costs
Subject to prior sale

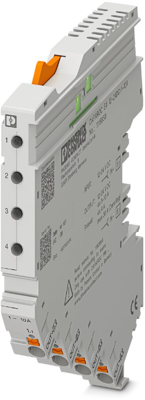

Electronic circuit breaker, 1115658, Phoenix Contact
Four-channel electronic circuit breaker module for protecting 12 and 24 V DC loads against overload and short circuit. Nominal current adjustable from 1 A to 10 A via LED button. For DIN rail installation via the CAPAROC current rails.
Features
- The benchmark that you can tailor with the individual combination of multi-channel protective modules
- Easy operation for everyone through tool-free assembly, uninterrupted installation, and transparent operating state
- Exceptionally easy design-in with four separately fused channels with the narrowest of space requirements of just 3 mm per channel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 24 V | |
| Type of mounting | DIN rail | |
| Connection | push-in | |
| Degree of protection (IP) | IP20 | |
| Tripping characteristics | E | |
| Version | electronic | |
| Product type | circuit breaker | |
| Pin number | 1 pole | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
