2910128 | Phoenix Contact

DC converter, 48 VDC, 240 W, 1 output, 48 to 56 VDC, 95.2 % efficiency, 2910128

Order No.: 64P3398
EAN: 4055626537320
MPN:
2910128
QUINT4-PS/48DC/48DC/5/PT
Series: QUINT
2910128 Phoenix Contact DC/DC Converters

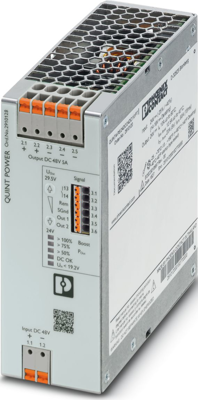

Image may differ
Unit Price (€ / pc.)
337.96 € *
Available in 10 days: 1,535 pcs. - if ordered today
Total Price:
337.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
337.96 €

DC/DC converter, 2910128, Phoenix Contact

Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 48 V DC, output: 48 V DC / 5 A.

Features

  • Most powerful output side: easy system expansion, reliable heavy load startup and miniature circuit breaker tripping
  • Most comprehensive signaling: preventive function monitoring reports critical operating states before errors occur
Technical specifications
Filter Property Value
Power 240 W
Design DIN rail
Number of outputs 1
Output voltage DC 48 to 56 VDC
efficiency 95.2 %
Height 130 mm
Output current 5 A
Width 50 mm
Input voltage AC 48 VDC
Logistics
Property Value
Customs tariff number 85366930
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
