2910125 | Phoenix Contact

DC converter, 48 VDC, 120 W, 1 output, 24 to 29.5 VDC, 94 % efficiency, 2910125

Order No.: 64P3389
EAN: 4055626537436
MPN:
2910125
QUINT4-PS/48DC/24DC/5/PT
Series: QUINT
2910125 Phoenix Contact DC/DC Converters
Image may differ
Unit Price (€ / pc.)
228.4800 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
228.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
228.4800 €

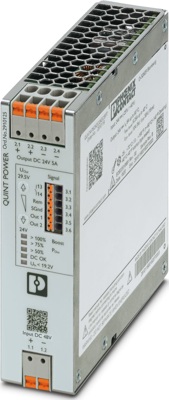

DC/DC converter, 2910125, Phoenix Contact

Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 48 V DC, output: 24 V DC / 5 A.

Features

  • Most powerful output side: easy system expansion, reliable heavy load startup and miniature circuit breaker tripping
  • Most comprehensive signaling: preventive function monitoring reports critical operating states before errors occur
  • Free selection between Push-in and screw connection
Technical specifications
Filter Property Value
Height 130 mm
Design DIN rail
Width 36 mm
Number of outputs 1
Output current 5 A
Power 120 W
efficiency 94 %
Output voltage DC 24 to 29.5 VDC
Input voltage AC 48 VDC
Logistics
Property Value
Country of origin PL
Customs tariff number 85366930
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
